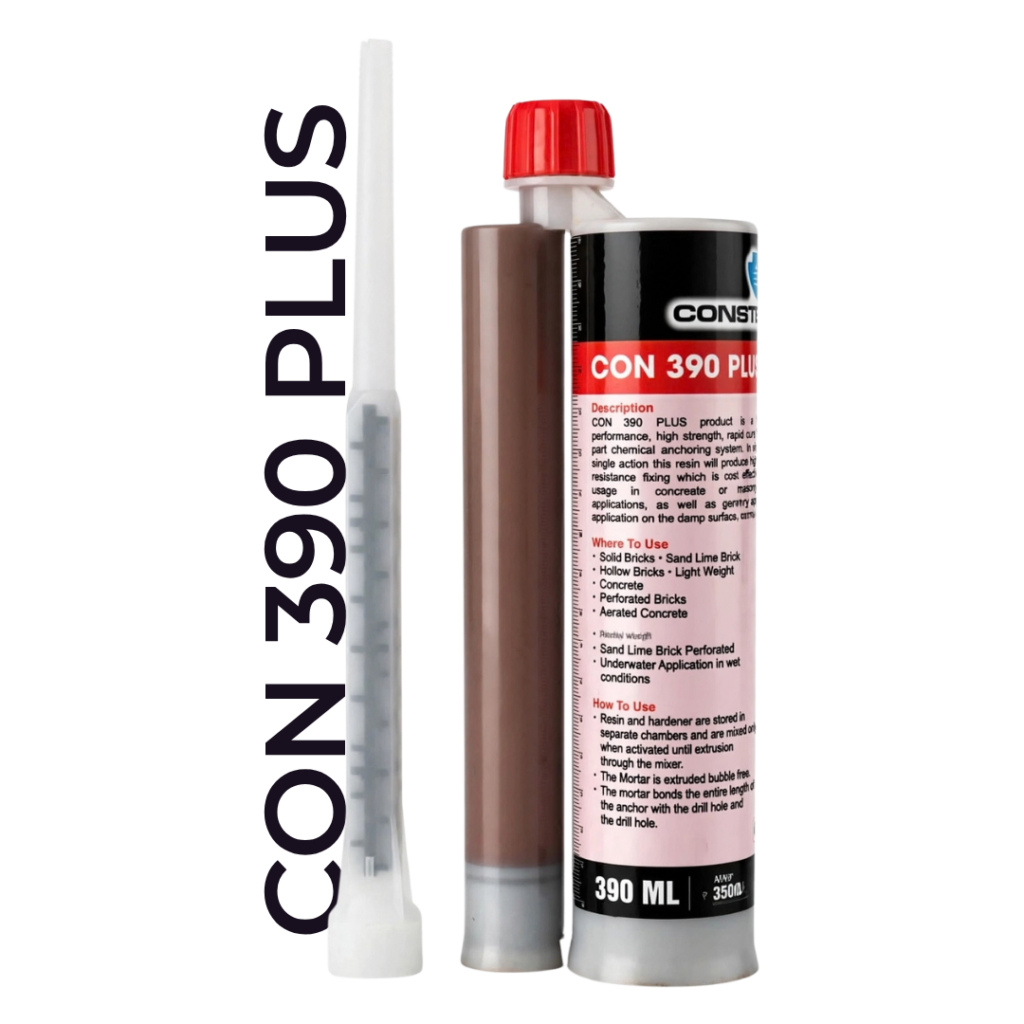

Con 360 Plus pure epoxy INJECTABLE CHEMICAL ANCHOR
- High-Performance Injectable Epoxy Chemical Anchor
- CON 390 PLUS is a high-performance, two-component modified epoxy resin anchoring system designed for reliable anchoring of threaded rods and reinforcing bars in cracked and uncracked concrete.
- It provides high strength, excellent adhesion, moisture tolerance and resistance to demanding environmental conditions.
- Its non-expansion anchoring system makes it suitable for structural reinforcement, steel-to-concrete connections and a wide range of heavy-duty anchoring applications.
APPLICATIONS
- Planting reinforcing bars and threaded rods in concrete structures
- Structural reinforcement and framework anchoring
- Curtain wall and stone dry-hanging bracket reinforcement
- Fixing equipment and machinery bases
- Steel-to-concrete and concrete-to-concrete anchoring connections
- Reinforcement and rebuilding of highways and bridges
- Water-conservancy and infrastructure projects
- Anchoring advertisement boards, noise barriers and barricades
KEY FEATURES
- Modified epoxy resin formulation designed to provide high bonding performance and durability.
- Offers ≥55 MPa tensile strength, ≥3500 MPa tensile modulus, and ≥82 MPa compressive strength.
- Provides strong adhesion for steel-to-steel and steel-to-concrete anchoring applications.
- Designed to maintain performance in humid environments.
- Provides resistance to acid, alkaline and salt environments as specified in the technical data.
- The anchoring system develops bonding without expansion forces, making it suitable for structural anchoring applications.
- With a thixotropy index ≥4.0, the adhesive is suitable for side and overhead anchoring
- The technical data sheet reports performance testing for wet/heat ageing, heat ageing, freeze-thaw cycles, fatigue stress, creep and corrosion environments.
Technical specifications
- Shelf life: At least 12 months from the manufacturing date when stored properly.
- Storage conditions: Store upright in a cool place between +10°C to +25°C, away from direct sunlight.
- Available size: 390 ml cartridge, 30 pieces per carton.
Mixing ratio: 3:1 by weight. - Curing time: 6–72 hours depending on ambient temperature.
additional services
- High-strength anchoring: Suitable for threaded rods and reinforcing bars in cracked and uncracked concrete.
- Versatile application: Suitable for structural reinforcement, steel-to-concrete connections and equipment anchoring.
- Moisture & chemical resistance: Designed for humid environments and resistance to acid, alkaline and salt conditions.
- Side & overhead anchoring: Excellent thixotropy helps prevent sagging during installation.
